Nanomaterial suitable for bendable wearable electronics

A film that is stretchy and bendable is offering the potential to be used in roll-up touchscreen displays, as well as wearable electronics, flexible solar cells and electronic skin.

The ultra-thin film being both transparent and highly conductive to electric currents has been produced by a cheap and simple method devised by an international team of nanomaterials researchers from the University of Illinois at Chicago and Korea University.

The results are reported in Advanced Functional Materials.

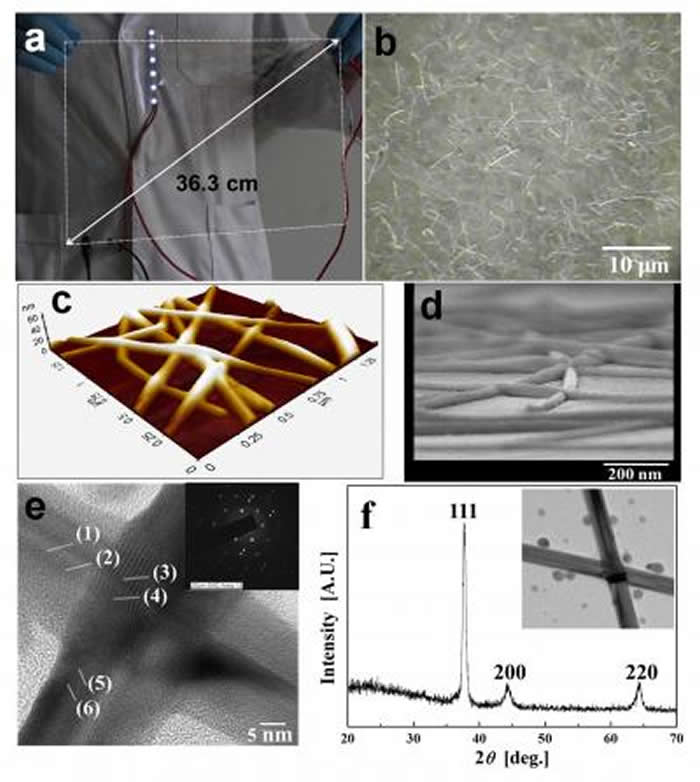

The new film is made of fused silver nanowires, and is produced by spraying the nanowire particles through a tiny jet nozzle at supersonic speed. The result is a film with nearly the electrical conductivity of silver-plate, and the transparency of glass, says senior author Alexander Yarin, UIC Distinguished Professor of Mechanical Engineering.

Yarin said: “The silver nanowire is a particle, but very long and thin.

The nanowires measure about 20µ long, so four laid end-to-end would span the width of a human hair. But their diameter is a thousand times smaller, and significantly smaller than the wavelength of visible light, which minimizes light scattering.


The researchers suspended the nanowire particles in water and propelled them by air through a de Laval nozzle, which has the same geometry as a jet engine, but is only a few millimeters in diameter.

“The liquid needs to be atomized so it evaporates in flight,” Yarin said. When the nanowires strike the surface they are being applied to at supersonic speed, they fuse together, as their kinetic energy is converted to heat.

Yarin said: “The ideal speed is 400m/s. If the energy is too high, say 600m/s, it cuts the wires. If too low, as at 200m/s, there’s not enough heat to fuse the wires.”

The researchers applied the nanowires to flexible plastic films and to three-dimensional objects. The surface shape doesn’t matter.

Sam Yoon, the corresponding author of the study and a professor of mechanical engineering at Korea University explained, the transparent flexible film can be bent repeatedly and stretched to seven times its original length and still work.

Earlier this year, Yarin and Yoon and their colleagues produced a transparent conducting film by electroplating a mat of tangled nanofiber with copper. Compared to that film, the self-fused silver nanowire film offers better scalability and production rate, Yoon said.

Yarin added: “It should be easier and cheaper to fabricate, as it’s a one-step versus a two-step process. You can do it roll-to-roll on an industrial line, continuously.”

More information: EurekAlert!
