Automated system detected cracks in nuclear power plants

Shown to be more accurate than other automated systems, a new automated system detects cracks in the steel components of nuclear power plants has been developed.

“Periodic inspection of the components of nuclear power plants is important to avoid accidents and ensure safe operation,” said Mohammad R. Jahanshahi, an assistant professor in Purdue University’s Lyles School of Civil Engineering. “However, current inspection practices are time consuming, tedious and subjective because they involve an operator manually locating cracks in metallic surfaces.”

Other automatic crack detection algorithms under development often do not detect cracks in metallic surfaces because the cracks are usually small, have low contrast and are difficult to distinguish from welds, scratches and grind marks. The new system, called CRAQ, for crack recognition and quantification, overcomes this limitation by using an advanced algorithm and a powerful “machine learning” technique to detect cracks based on the changing texture surrounding cracks on steel surfaces.

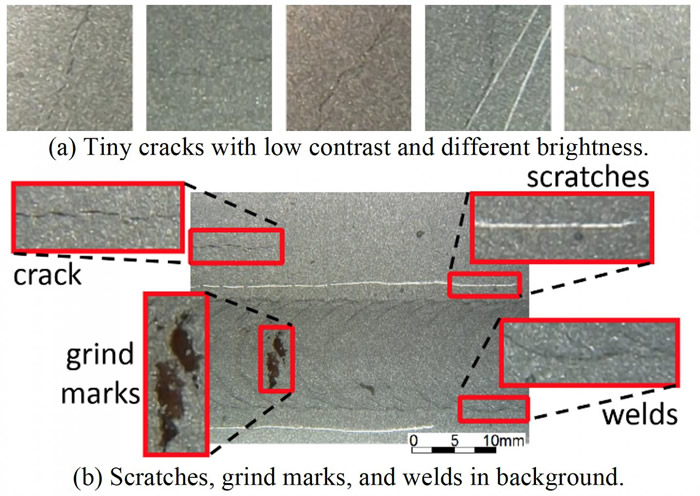

cracksimageee

Findings are detailed in a research paper published this week in Computer-Aided Civil and Infrastructure Engineering. The paper is available online here.

The automated approach could help improve the state of the nation’s infrastructure, recently given an overall grade of D+ by the American Society of Civil Engineers, he said.

“One reason we have a grade of D+ for the infrastructure is insufficient inspection,” said Jahanshahi, director of Purdue’s Smart Informatix Laboratory. “So we want to have more frequent inspection using robotic systems to collect data.”

The nation operates 99 commercial nuclear power plants, which account for about 20% of total U.S. electricity generation. Aging can result in cracking, fatigue, embrittlement of metal components, wear, erosion, corrosion and oxidation.

“Cracking is an important factor in aging degradation that may cause leaking and result in hazardous incidents,” Jahanshahi said. “For instance, the Millstone nuclear power station in Connecticut had an accident in 1996 that was caused by a leaking valve, and the accident cost $254m. In 2010, the Vermont Yankee Nuclear Power Plant had an accident where deteriorating underground pipes leaked radioactive tritium into groundwater supplies, resulting in $700m in damage.”

Complicating the inspection process is that nuclear reactors are submerged in water to maintain cooling.

“Consequently, direct manual inspection of reactor internals is not feasible due to high temperatures and radiation hazards,” Jahanshahi said. “So remotely recorded videos at the underwater reactor surface are used for inspection. However, recent testing has identified a need for increased reliability associated with identifying cracks from reviews of live and recorded data. The results indicate that this capability is degraded by human involvement in identifying cracks, even when identifcation should be easy.”

Other automated crack-detection systems under development are designed for processing single images, whereas the new method processes multiple video frames, providing more robust results. Findings show the system outperformed two others under development.

“In contrast to other methods that only focus on detecting cracks in one image, we propose a method called Bayesian data fusion that tracks detected cracks in video frames and fuses the information obtained from multiple frames,” Jahanshahi said. “Moreover, we can alter out falsely detected cracks and increase the reliability and robustness of crack detection by using Bayesian decision theory,” which determines the probability that an object is a crack or a false alarm. The system assigns “confidence levels” automatically assessing whether the detected cracks are real, outlining the cracks with color-coded boxes that correspond to these confidence levels. For example, if the algorithm assigns a high confidence level to a crack, the box outline is red. The processing procedure takes about a minute.

“Then, a technician could do a manual inspection to confirm that there is a crack,” Jahanshahi said.

The research paper was authored by doctoral student Fu-Chen Chen; Jahanshahi; doctoral student Rih-Teng Wu; and Chris Joffe, technical leader for Non-destructive Evaluation at the Electric Power Research Institute (EPRI), a nonprofit organization funded by the electric utility industry.

Researchers recorded videos using an underwater camera system scanning 304 stainless steel specimens containing cracks and also features such as welds, grinding marks and scratches.

Future research will include work to develop a more accurate and more fully automated system using advanced simulations and computational software.

“We are currently working on the second version of the software by developing deep learning algorithms to detect cracks for this application where we have significantly improved the performance of the system using Constitutional Neural Networks,” Jahanshahi said.

The researchers have filed a patent application through the Office of Technology Commercialization of the Purdue Research Foundation.

More information: EurekAlert!
