Energy-efficient 100V Low Profile Schottky Rectifiers Now Available

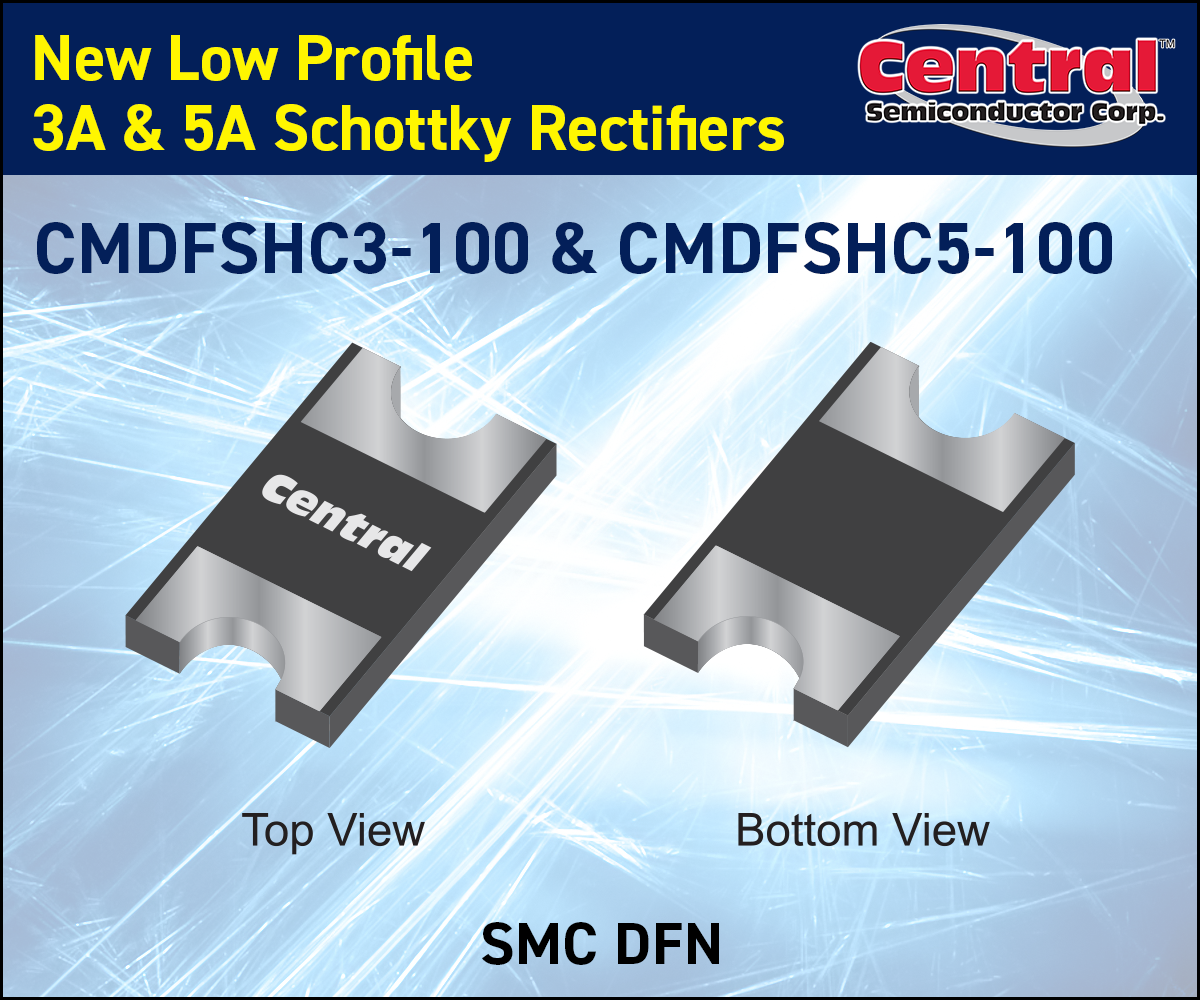

Central Semiconductor Corp., has introduced its latest 100V low profile Schottky rectifiers: the 3A CMDFSHC3- 100 and the 5A CMDFSHC5-100. These energy efficient devices are packaged in the low profile SMC DFN surface mount case, and utilize highly reliable passivated silicon die.

The space-saving SMC DFN package is 1.25mm in height, 53% lower than the comparable SMC, to support
designs requiring low board profiles. Electrical specifications for these highly energy efficient devices include a
low forward voltage (VF) as low as 0.78V at 5A. These devices are ideal for reverse polarity protection, boost
converters, DC-DC conversion, power factor correction and power management, and general rectification
applications. Central also has the ability to perform parametric electrical selection to meet designers’ specific
requirements.

To see application examples and additional information, please visit www.centralsemi.com/applications
Pricing for 3,000 pieces on 13” tape and reel starts at $0.18 for CMDFSHC3-100, and $0.21 for CMDFSHC5-100.

Samples are available upon request.

Complete specifications for CMDFSHC3-100 and CMDFSHC5-100 are available on Central’s website. Click here.
