5nA low leakage diodes offer super-fast switching

Aimed at designers who require ultra-low leakage and super-fast switching speeds, the DLLFSD01x switching diodes introduced by Diodes Incorporated target LCD displays, portable electronics and numerous computer and consumer products. These devices are particularly applicable to systems that require high power efficiency and low switching loss.

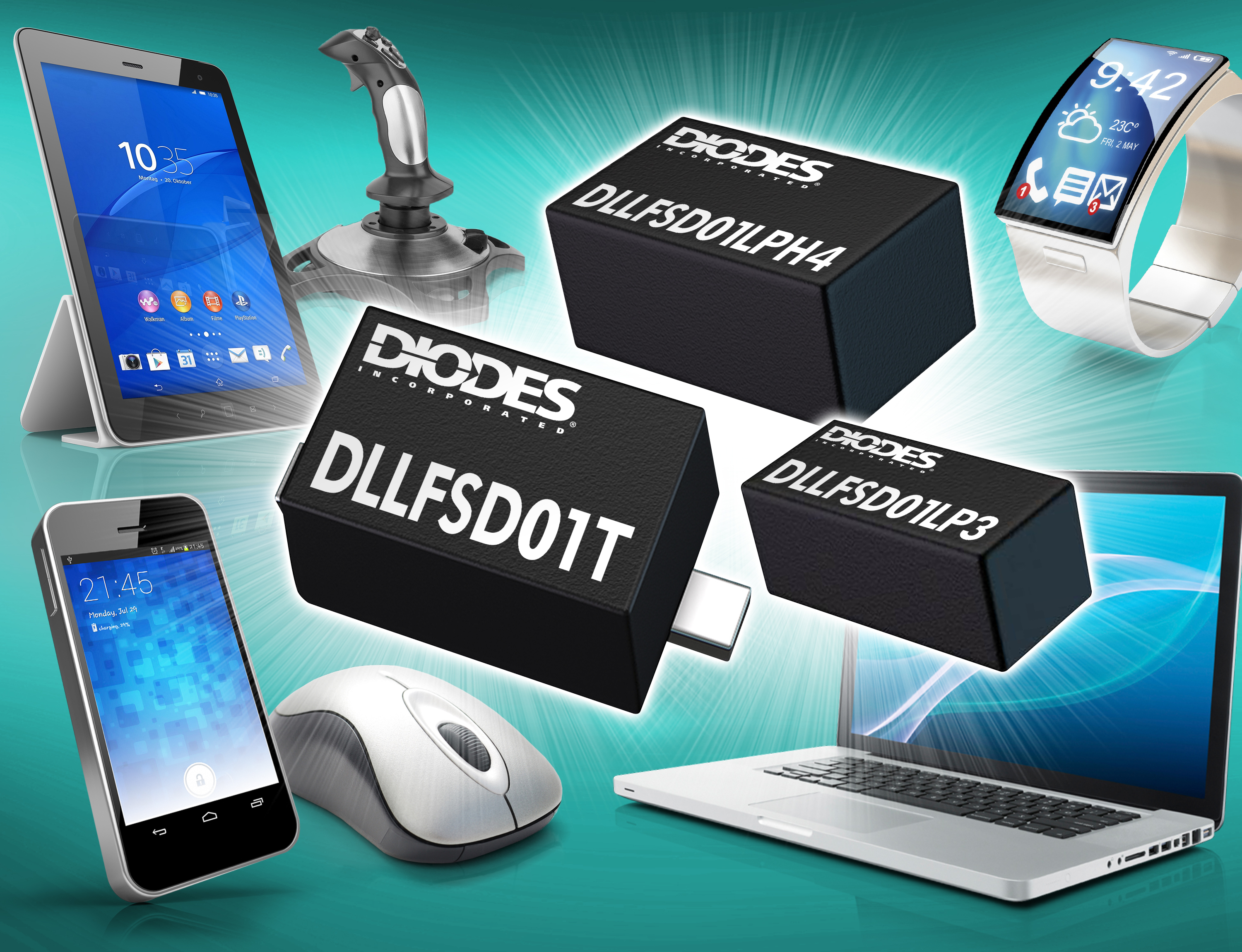

Diodes Incorporated, DLLFSD01xThe DLLFSD01x series of switching diodes features a typical 5nA ultra-low leakage current that significantly reduces system power consumption and increases energy efficiency. The devices feature a super-fast switching speed of trr≤4ns, which also contributes to greater efficiency by reducing switching loss in the end-application. Additionally, an extremely low total capacitance, around 0.5pF, makes these switching diodes easy to drive.

With a choice of ultra-small leaded and leadless packages, the DLLFSD01x switching diodes enable small form-factor designs with superior performance compared to competitive products.

In 3k piece quantities, the DLLFSD01T-7 in SOD523 package is priced at $0.0464 each, while in 10k quantities the DLLFSD01LPH4-7B in X2-DFN1006-2 package and DLLFSD01LP3-7 in X3 DFN0606-2 package are respectively priced at $0.0488 and $0.0850 each.
