Barebone system designed with 6th gen core processors

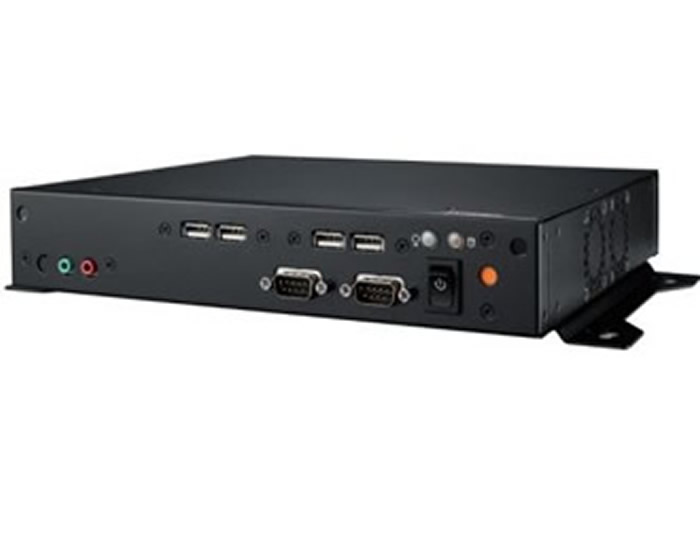

The release of Advantech’s latest thin barebone system with 6th gen. Intel Core Processors – EPC-T2285 has been announced. This system is designed with Intel 6th gen Core I processors which have high processing and graphic performance. The integrated Intel gen 9 graphics, which are featured in this microarchitecture, supply up to two independently operated 60Hz 4K displays via DisplayPort or HDMI Port. EPC-T2285 can also support Wall/ VESA/ Rack mounting.


Thin design and high performance for space-limited desktop solutions
The EPC-T2285 measures just 250×44.2×225 mm. The height is only 1U, but it uses the high processing capability of a desktop CPU up to deliver high performance. The motherboard uses Advantech’s AIMB-285 thin Mini-ITX form factor industrial motherboard supporting 14nm process quad/dual-core Intel 6th Core i7/i5/i3 and Celeron processors. The Intel H110 Express chipset supports Dual Channel DDR4 2133MHz memory (up to 32GB) in two SODIMM slots. Features include integrated Intel gen 9 graphics (Display Port, HDMI outputs), dual Gigabit Ethernet, four USB 2.0 ports, four USB 3.0 ports, two serial ports (RS-232/422/485, RS-232 w/ 5V 12V), audio jack w/ mic in, line out, mPCIe w/ mSATA, mPCIe for a wireless module and a 2.5Φ power jack with 12VDC input.

Implementing IoT applications with WISE-PaaS/RMM
Due to its thin design, powerful processor, rich I/O interface, and flexible hold mode, the EPC-T2285 is suited for industry automation, digital signage, and interior kiosk applications. The best feature of EPC-T2285 is that it can combine with Advantech’s WISE-PaaS/RMM solution to implement IoT applications. WISE-PaaS/RMM is an IoT device management software platform which comes with more than 100 RESTful APIs including account management, device management, device control, event management, system management and database management. WISE-PaaS/RMM not only helps create new web services but also helps to integrate functions and data with its powerful management tools. Furthermore, WISE-PaaS is going to release WISE-Agent source code as open source which can help customers to develop their own applications even faster. WISE-PaaS highly enhances connectivity for hardware, software, devices and sensors, and helps customers to transform their business to include IoT cloud services.

EPC-T2285 desktop system features:

  • thin design only 1U in height
  • thin barebone with multi-IO ports suitable for a variety of application environments with DC-in design
  • quick, easy installation of additional peripherals
  • supports Wall/VESA/Rack mounting kit
  • lock type DC power jack EPC-T2285 series is available for order now

Datasheets available:

Advantech EPC-T2285 Series System datasheet
