Dimmable 150W Constant Current LED Drivers

Phihong has announced a new series of 150W constant current LED drivers for commercial lighting applications. Suitable for use in both dry and damp locations, and featuring optional 0–10V dimming, in addition to a 20V auxiliary output for controllers, the new PDA150 Series LED drivers provide energy efficient, flicker- and shimmer-free performance in a broad range of commercial LED lighting applications, including indoor and outdoor fixtures, area, high bay, and architectural lighting.

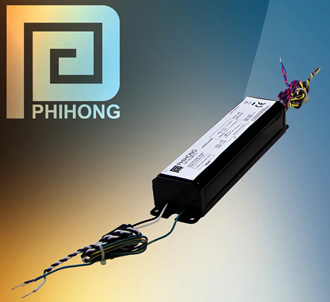

Phihong PDA150W Series LRated for input voltages spanning 120–277VAC, PDA150 Series LED drivers deliver 150W output power, and typical efficiencies of 94% at 230–270VAC and 92% at 120VAC. Available with six constant current outputs (350mA, 530mA, 700mA, 1050mA, 1500mA, and 1680mA), the series has a life expectancy of 50,000 hours at full output power, 50°C ambient temperature, and ≤80°C Tcase, and 100,000 hours at ≤65°C Tcase, and is covered by a five-year warranty. Water- and dustproof per IP66, PDA150 Series LED drivers can tolerate humidity levels ranging from 10–95%, and feature over-voltage, over-current, and short-circuit protection that allows them to withstand sustained open circuit and short circuit output conditions without damage.

“The new PDA150 Series LED drivers deliver outstanding, high efficiency performance over long operational lifetimes and have several additional features designed to provide effective, value-added solutions in residential LED lighting applications, including optional 0–10V dimming and a 20V auxiliary output for controllers,” said Keith Hopwood, vice president of Phihong.
PDA150 Series LED drivers are rated for use in operating temperatures spanning -40°C to +85°C, and exhibit power factor correction of ≥ 0.9, total harmonic distortion (THD) of less than 12%, and a 0.5mA maximum leakage current at 277VAC. The series is also certified to CE, UL8750, and RoHS safety specifications.

PDA150 Series LED drivers measure 241mm x 59mm x 39mm (9.49” x 2.32” x 1.54”), weigh 1,043g (2.3lbs), and utilize standard length (25cm/10”) 18AWG solid copper lead wires for the input, output, 0–10V dimming, and auxiliary. Pricing for single unit quantities starts at under $70 through Phihong distributors.
