Opening the Door for New Organic Electronics

By Ruth Seeley

While potential applications for organic materials that can conduct charge were identified decades ago, to date only organic light-emitting diodes (OLEDs) have made a commercial impact. Gaps in the understanding of organic semiconductors have limited improvements to charge carrier mobility, which means applications for flexible electronic devices and solar cells haven’t been possible.

But an international team including researchers from Osaka University has just demonstrated the mechanism of charge mobility in an organic single crystal.

To improve the charge carrier mobility in organic crystals, significant attention has been focused on understanding how the electronic structure of organic single crystals allows for the movement of charge. Analyzing highly ordered single crystals instead of samples that contain many defects and disorders gives the most accurate picture of how the charge carriers move in the organic material.

This is a representation of carrier mobility in hard inorganic materials (upper figure, band transport) and flexible organic solids (lower figure, flexibility induced transport mechanism). (Image Credit: Kazuyuki Sakamoto)

The researchers analyzed a single crystal of rubrene, which, owing to its high charge mobility, is one of the most promising conducting organic material. However, despite the popularity of rubrene, its electronic structure is not well understood. They found that theory-based conclusions reached in previous work were inaccurate because of molecular vibrations at room temperature that are a consequence of the flexibility of the material.

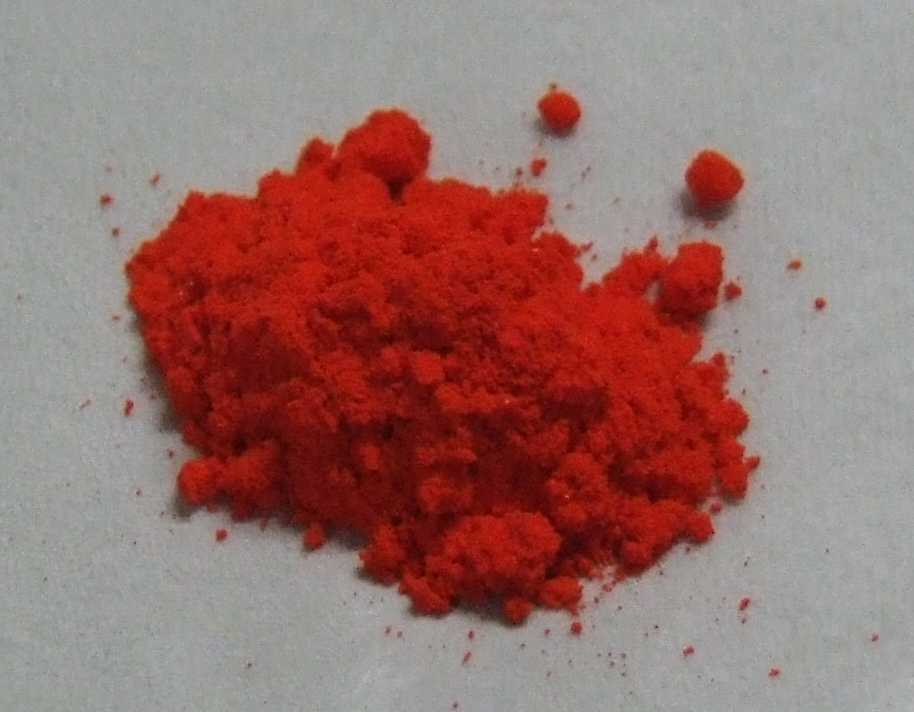

Rubrene, with its high charge mobility, is one of the most promising conducting organic materials, but its electronic structure has been difficult to pin down.

“We have demonstrated a new mechanism that is not observed for traditional inorganic semiconductor materials,” said Osaka University Professor Kazuyuki Sakamoto, one of the study’s authors. “Inorganic semiconductors such as silicon, which are widely used in electronics, are generally hard, inflexible materials; therefore, certain assumptions made for these materials do not translate to organic conducting materials that are more flexible.”

The successful preparation of an ultra-high-quality single rubrene crystal sample allowed experiments to be carried out that provided a definitive comparison with previous data. The experiments highlighted the limitations of previous assumptions and revealed the influence of other factors such as electron diffraction and molecular vibrations.

“By reliably demonstrating the room temperature behavior of an organic conducting material and reframing the thinking behind previous conclusions that have been drawn, we have provided a much clearer basis for research going forward,” Professor Sakamoto explains. “We hope that this insight will accelerate the development of flexible conducting devices with a wide range of exciting functions.”

Source: Osaka University
